Tensile Testing Machines
MPM is an authorized distributer of Hoytom Universal Testing Machines. MPM provides installation, maintenance, and calibration services for all equipment sold within the USA.
DI-CP/V4
400-2000 kN
DOWNLOAD FULL PRODUCT SHEET
The DI-CP/V4 model, which is part of the PRO series, has been designed to perform tensile, compression, bend/flex, and shear testing with nominal load capacities between 400 and 2000 kN. Tensile specimen gripping is carried out using the hydraulic grips which are located in the lower portion of the load frame. Compression testing is done in the upper load frame region. Each machine includes the Hoytom HoyWin test control software and custom designed electronics. This provides maximum performance and accuracy through a simple and intuitive interface.
Applications include the testing of materials, cables, fixings, concrete, composites, …etc.

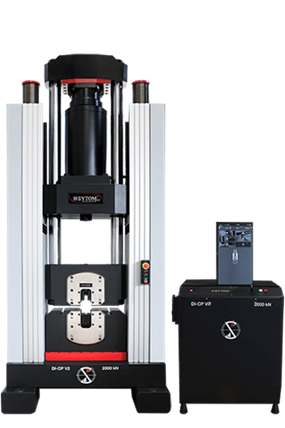

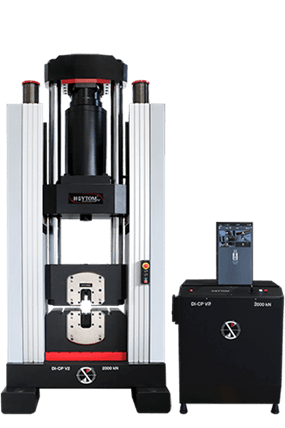

DI-CP/V2
1500-2000 kN
DOWNLOAD FULL PRODUCT SHEET
The DI-CP/V2 model, which is part of the PRO series, has been designed to perform tensile, compression, bend/flex and shear testing, with nominal capacities between 1500 and 2000 kN. Tension is always tested using the hydraulic grips, located in lower area, and compression in the upper test area.
In the DI-CP/V2 model, the crosshead supporting the piston can be moved electromechanically via ball screws, and thereby vary the space between the grips. This makes the equipment extremely flexible for a wide range of applications.
Each machine includes HoyWin® test control software, and our custom designed electronics. This provides maximum performance and accuracy, through a simple and intuitive interface.

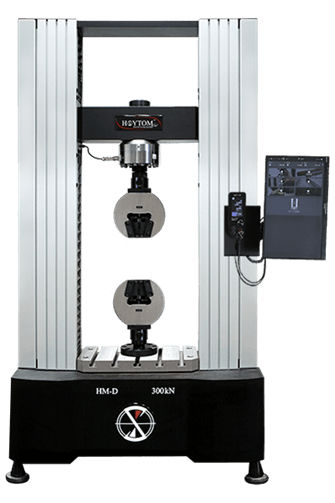

HM-D Lab Series
5-1000 kN
DOWNLOAD FULL PRODUCT SHEET
The HM-D model, which is part of the Hoytom LAB series, is made with nominal load capacities between 5 and 1000 kN. The high capacity load cell provides maximum accuracy across the entire measurement range. It can also be equipped with a large range of fixtures such as: tensile grips, T-Slotted plates, compression plates, bending tools, extensometers, etc. Each machine includes the Hoytom HoyWin® test control software and custom designed electronics. This enables users to achieve maximum performance and accuracy through a simple and intuitive interface. Typical test applications include high strength steel, aerospace and automotive structures, screws, nuts, etc.
HM-S Pro Series
125-250 kN
DOWNLOAD FULL PRODUCT SHEET
The HM-S model, which is part of the Hoytom PRO series, can be supplied with load capacities between 125 and 250 kN. The test machine’s high quality load cells provide a high degree of test precision. The test machine can also be equipped with an extensive range of fixtures, such as tensile grips, compression plates, bending fixtures, extensometers, etc. Each machine includes the HoyWin® test control software, and our custom designed electronics. This enables users to extract maximum performance and precision through a simple and easy to use interface. It is mainly geared for use in production, for repetitive testing with similar longitudinal specimens, etc.

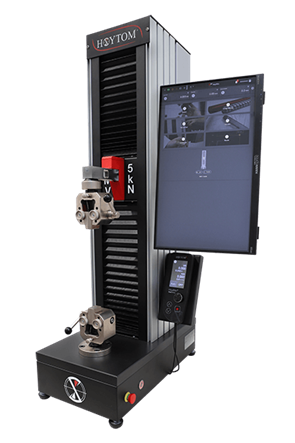

HM-V Pro Series Up to 5 kN
DOWNLOAD FULL PRODUCT SHEET
The HM-V 5 kN model, which is part of the Hoytom PRO series, is made for nominal load cell capacities up to 5 kN. The test machine can also be equipped with an extensive range of fixtures, such as tensile grips, T-slotted plates, compression plates, bending fixtures, extensometers, etc. Each machine includes custom designed electronics for reading the force and displacement on a touch screen. This machine allows the testing of metals, plastics, polymers, composites, wood, textiles, and ceramics in addition to many others.
